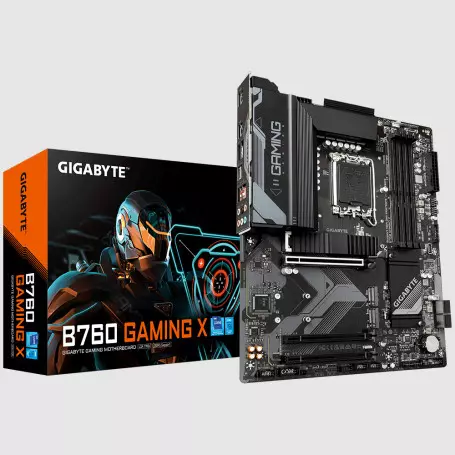

Carte Mère Gigabyte B760 GAMING X DDR5 ATX Socket 1700

Marque

Gigabyte

Référence fabricant (SKU)

B760 GAMING X

Modèle

B760 GAMING X DDR5 ATX Socket 1700

Compatibilité CPU

Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

Socket

LGA1700

Chipset

Intel® B760 Express Chipset

Type

DDR5

Fréquences mémoire

7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s

Technologie Dual Channel

Oui

Capacité maximale par slot

32 Go

Capacité maximale

128 Go

RAM ECC prise en charge

Oui

Chipset graphique embarqué

Integrated Graphics Processor-Intel® HD Graphics

Compatible avec le chipset graphique du CPU

Oui

Chipset audio

Realtek® Audio CODEC

Canaux

2/4/5.1/7.1-channel

Ethernet RJ45

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

WiFi

Non

Bluetooth

Non

Ports SATA

4 x SATA 6Gb/s connectors

Ports M.2

2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Compatibilité RAID

RAID 0, RAID 1, RAID 5, and RAID 10

PCI-Ex 16x

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

PCI-Ex 8x

0

PCI-Ex 4x

0

PCI-Ex 1x

0

Panneau arrière

1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
6 x audio jacks

Ports USB

1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports

Connecteurs supplémentaires

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Dimensions

30.5 x 24.4cm

Couleur

Noir

LED

Non

Format

ATX

Garantie constructeur

36 mois
